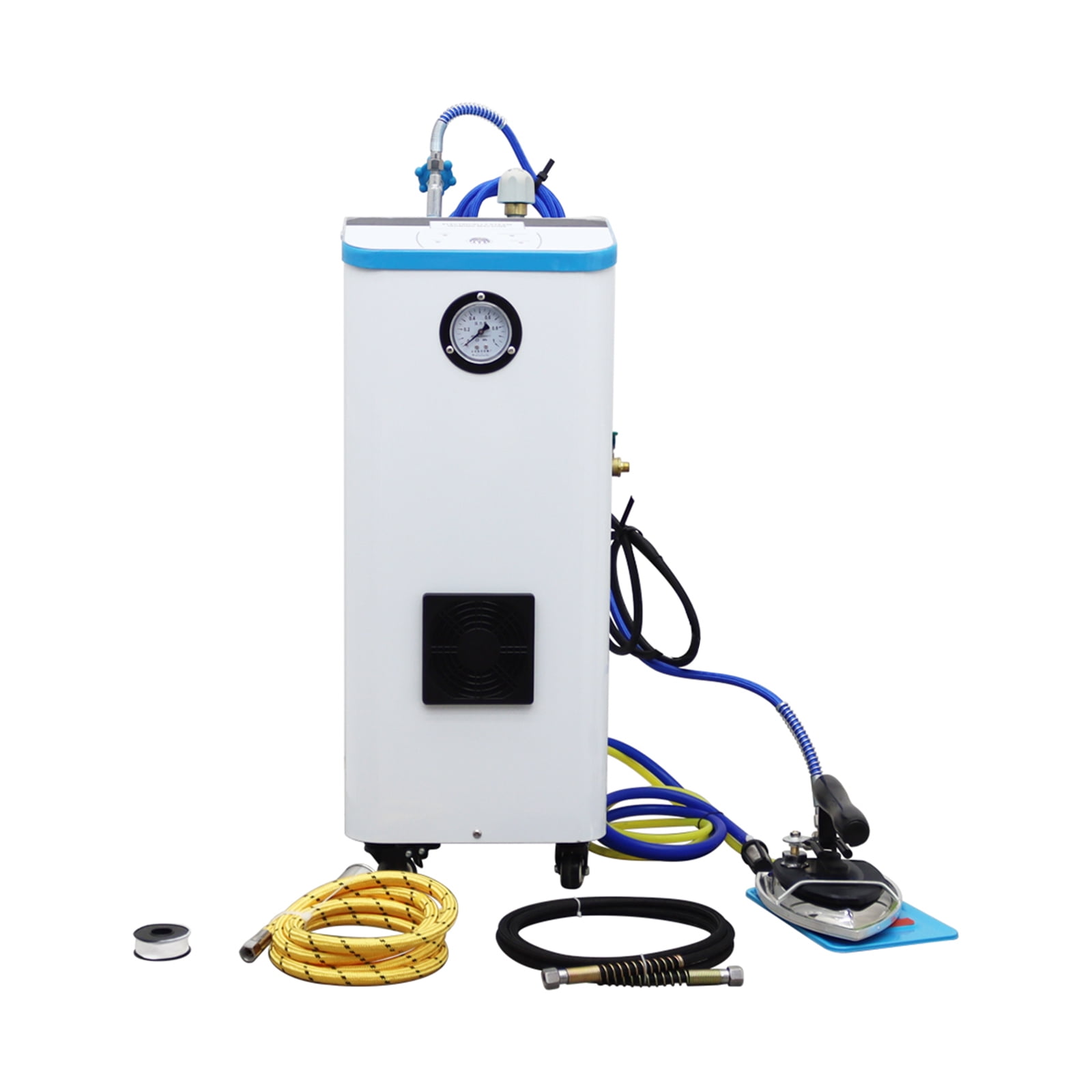

ST-9 Full Steam Hanging Boiler Electric Iron Industrial Steam Iron Curtain Electric Iron Boiler

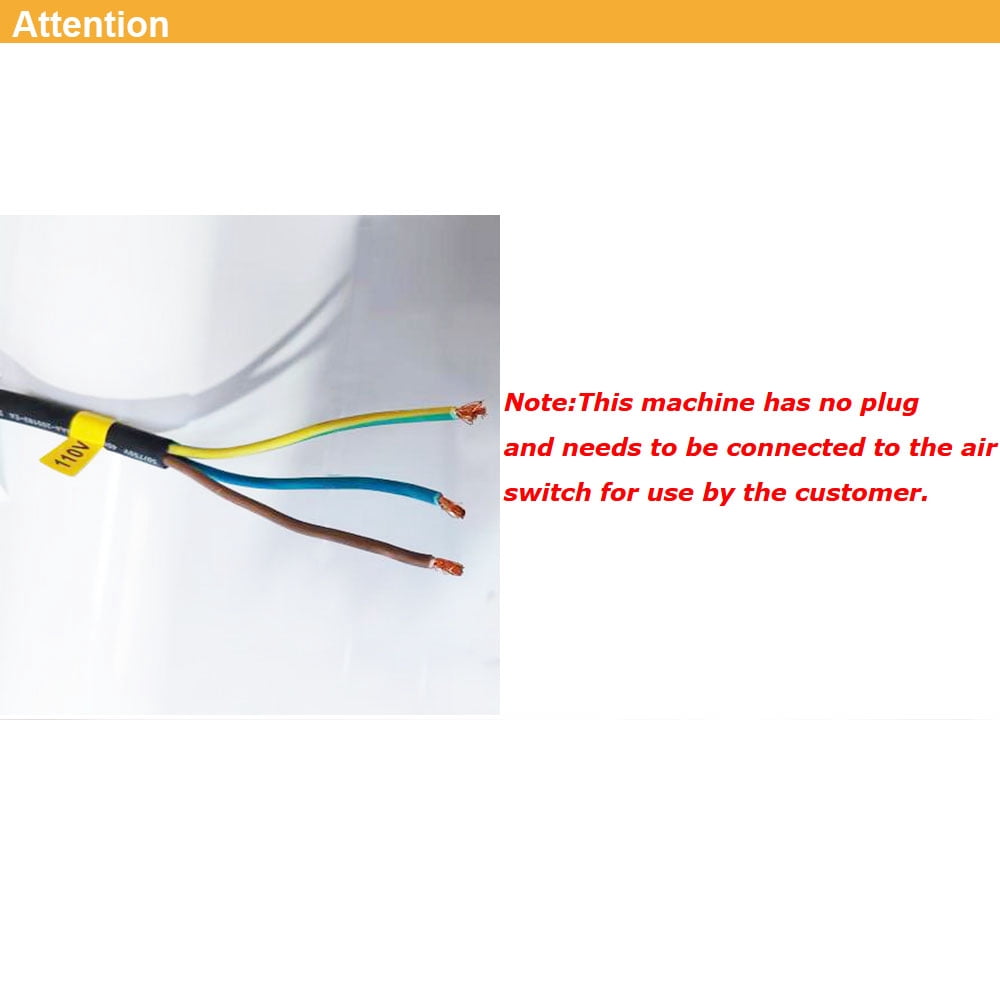

Product Overview: <br>This product is a high-grade ironing appliance, super pressure, continuous dry steam input, secondary heating, will not clog the iron. It has the characteristics of automatic water addition, automatic water level control and automatic heating disconnect to ensure that the generator can continue to work. <br> <br>Product Parameters: <br>Voltage: 110V <br>Heat Power: 3.5KW <br>Iron Power: 1KW <br>Rated Presure: 0.35-0.4MPa <br>Rated Steam Output: 3kg/h <br>Rated Temperature: 151℃ <br>Tank volume: 7L <br> <br>Usage: <br>1. Prepare a bucket of water, the steam generator pumping pipe and filter into the bucket, preferably close to the bottom of the water. <br>2. Connect the power supply. <br>3. Push the air knife on the right side of the machine, press the boiler heating switch, and the indicator light will turn on. If the water inside the generator is not enough, the solenoid valve will be automatically opened to control the pump and start pumping. When the water level reaches the set water level, the pump will automatically stop working and the heating pipe will begin to heat. The heating indicator lights up until the generator reaches the rated pressure. <br>4. Connect the iron air connector and steam pipe, lock back the connector, and tighten the steam pipe. <br>5. Open the heat switch of the iron, press the steam switch on the iron handle, the solenoid valve begins to provide steam, and the temperature of the iron can be adjusted by the knob. <br>6. The pressure gauge on the front can check the real-time steam pressure. Water level controllers and probes ensure that water levels are kept within reasonable limits. <br>7. When the pressure is too high, the spring safety valve opens to reduce the pressure inside the generator. <br> <br>Notice: <br>1. The generator should be grounded reliably and the leakage protector installed. <br>2. Prevent the rear heat sink window from being blocked and keep the machine dry. <br>3. Prevent the water pump from overheating due to dry burning without water. <br>4. Use soft water instead of hard water. <br>5. Open the drain valve regularly to drain. <br>6. Regularly clean the scale on the generator and probe. <br> <br>Note:This machine has no plug and needs to be connected to the air switch for use by the customer. <br> <br>Item included: 239951 <br>1* Industrial Steam Iron Curtain Electric Iron Boiler 110V

• ‌Steady Steam Supply: Enhanced automatic pumping device ensures sufficient gas volume, increased flow/strength, and heating pipe water supply protection.
• Intuitive Operation: Clear switch indicator lights (power, water shortage, etc.) make operation simple and status easy to monitor.
• Heat-Resistant Components: Upgraded heat-resistant rubber wires and gas pipes prevent damage, boosting long-term durability for industrial use.

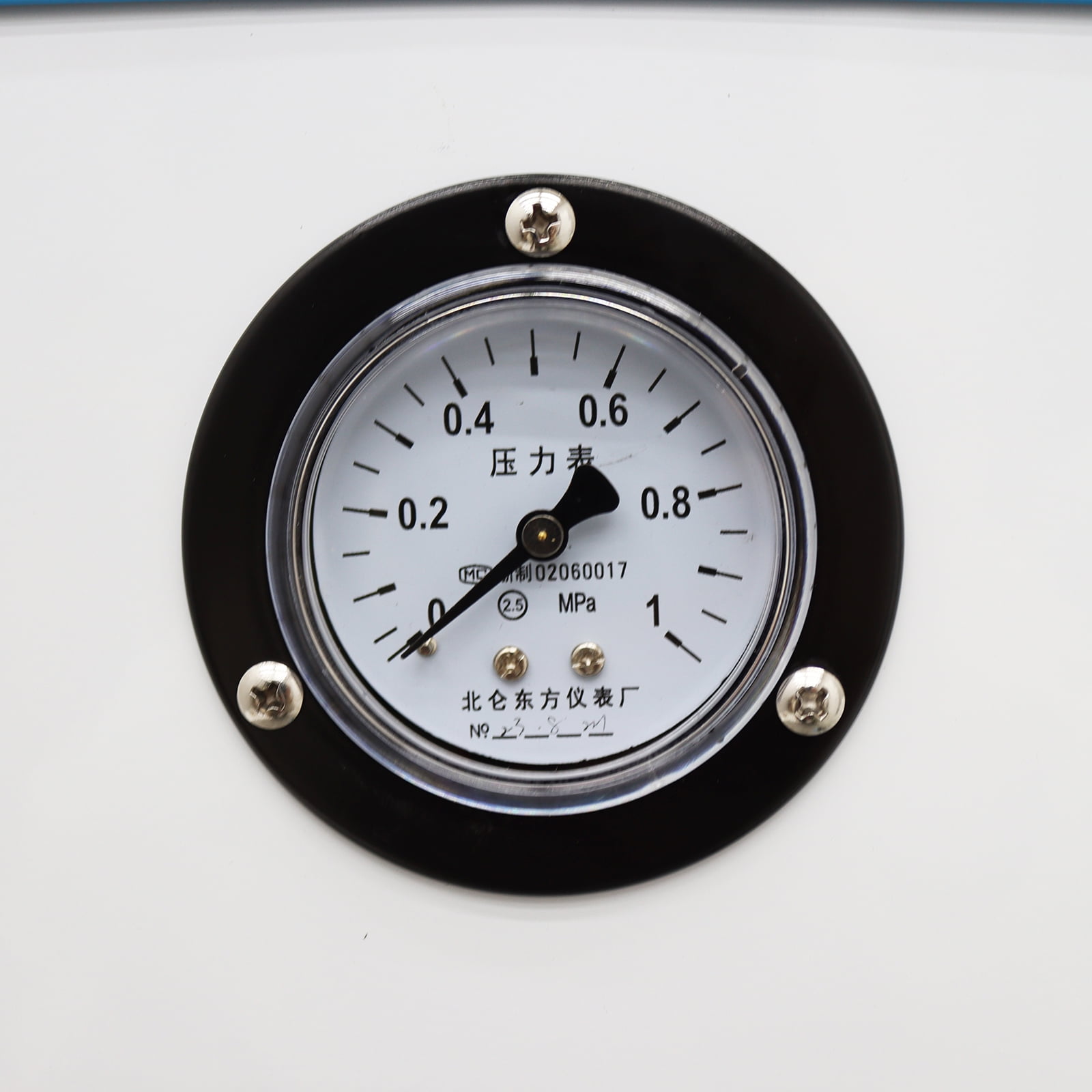

• Visual Pressure Gauge: Equipped with a visible pressure gauge to track steam pressure, ensuring stable and safe operation.
• All-Metal Cooling System: Full metal cold air system supports all-day working, ideal for high-demand industrial ironing tasks.
