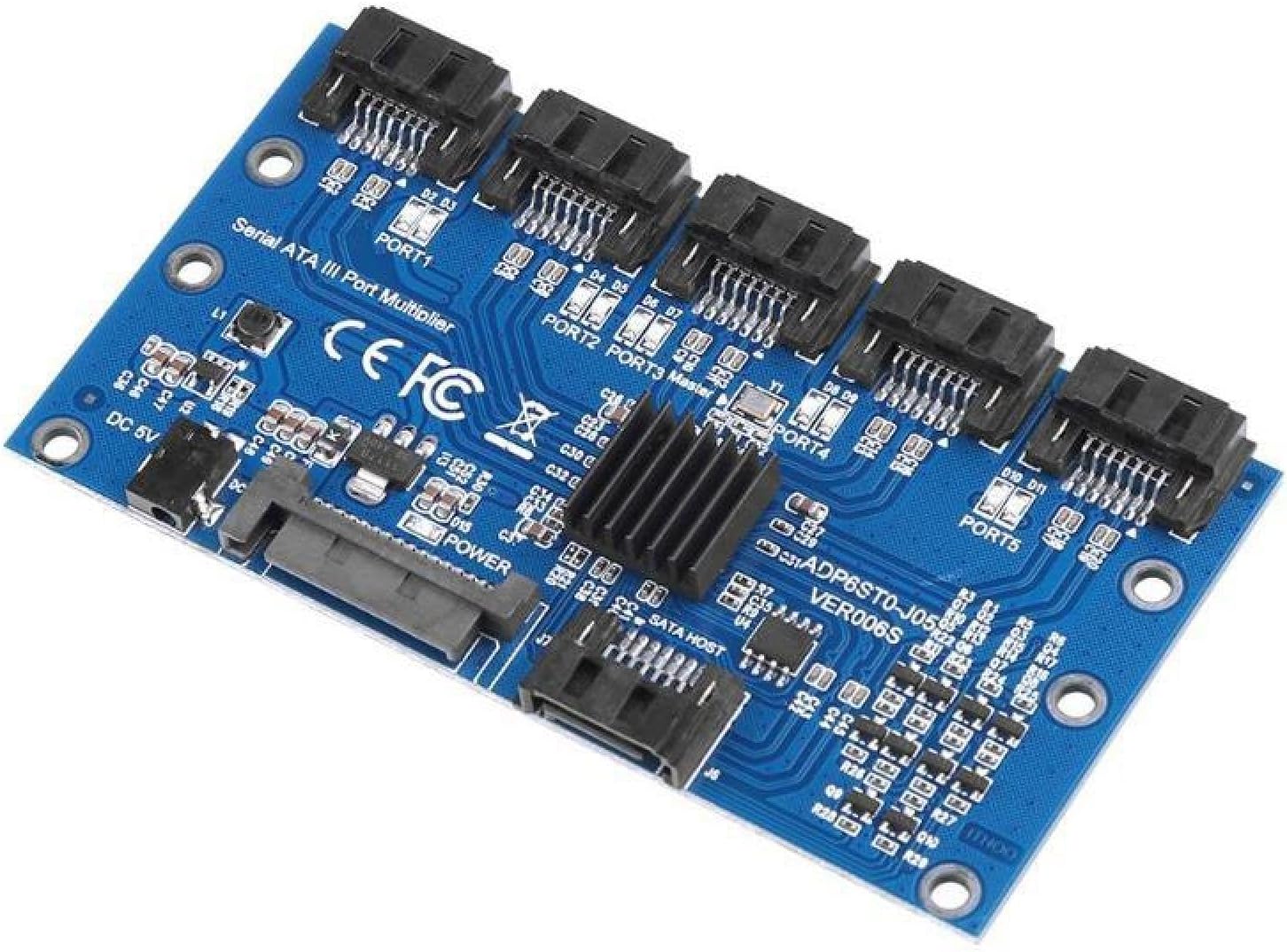

Universal 7PIN 6-Port 6.0Gbps SATA Expansion Card SATA 3.0 1 to 5 Expansion Card with DC Power Cable

Features:Supports 6-port 6.0Gbps SATA III interfaceOutput swing control and automatic impedance calibration for SATA III PHY.Supports asynchronous signal recovery.Supports spread spectrum clocking.Supports partial / slumber power saving mode.Automatically speed negotiation.Supports BIST and loopback mode.Supports staggered spin-up (Optional).Supports Hot-Plug.Supports asynchronous notification.Supports ATAPI drives.Supports command-based and FIS-based switSpecifications:Product Name: SATA3.0 1 to 5 Expansion CardProduct controller: JMICRON JMB575Product interface: SATA 7PINSupport systems: for WINXP/for WIN7/for WIN8/for WIN10/for WIN11Product size: 102 * 55 * 8mm/4 * 2.2 * 0.3inPackage includes:1 x SATA Expansion Card1 x USB-DC Power CableNotes:This expansion card requires the motherboard or expansion card to support the PM (SATA PORT MULTIPLIER) feature in order to recognize 5 hard drives. Generally, motherboard SATA does not support this feature. If not supported, only one card can be recognized.The power supply of SATA or DC2.5 must be plugged in to power the expansion card.

• Supports BIST and loopback mode.
• Supports staggered spin-up (Optional).
• Supports Hot-Plug.
• Supports asynchronous notification.
• Supports ATAPI drives.
• Supports command-based and FIS-based swit
